Description

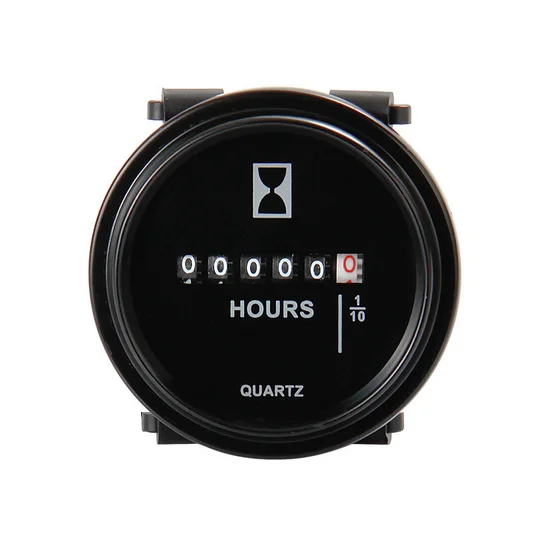

Industrial hour meter for outboard motor, lawn mower and various applications, this IP67 mechanical electric hour meter (AC/DC) provides reliable protection of runtime data during power interruptions, features a robust mounting design for stable installation, and offers non-polarized wiring for easy setup. Choose this durable hour meter for simplified equipment monitoring.
Specification
| Model | ATO-RL-HM009 |
| Timing Range | 0-99999.9H (Total accumulated time non-resettable) |
| Timing Accuracy | 0.1H (Automatically resets to 0 when exceeding 99999.9H) |
| Waterproof Rating | IP67 |
| Operating Temperature | -25℃ ~ 65℃ |
| Operating Voltage | AC/DC 8-80V, AC 110-250V (Optional) |
| Timing Mode | Power-on activated timing |
| Dimension | 56*56*54mm |
| Package Dimension | 73*64*60mm |
| Weight | 56g |
Features
- Permanent Data Storage: This mechanical electric hour meter automatically saves total runtime upon power loss, so critical operating hours are never erased.
- Battery-Free: Unlike ordinary hour meters, this mechanical hour meter features a robust mechanical core and a battery-free design, resulting in low maintenance costs.
- IP67 Waterproof: As a industrial hour meter, this electric hour meter comes with a fully sealed housing that withstands rain, dust, and harsh outdoor or industrial environments.
- Secure and Anti-Detachment: This mechanical hour meter flush-mounts on the panel and is fixed with brackets, offering zero risk of falling off even under heavy vibration.
- Non-polarized plug: This hour meter accepts connection to either the positive or negative terminal of the power source, simplifying wiring and saving installation time.
- Laser-Etched Marking: Every marking on this mechanical hour meter is permanently laser-etched, far more durable and legible than adhesive labels.
Dimension
Installation Diagram
Applications
ATO mechanical electric hour meter ideal for lawn mowers, tractors, loaders, road rollersships and generators. It delivers precise runtime timekeeping for equipment maintenance and operating hour monitoring.
Tips: How should different hour meter types be selected?
Hour meters can be selected based on timing method, power compatibility, and environmental requirements. Electric hour meters record time only when electrical power is supplied, making them suitable for electrically driven equipment, while engine-run or vibration types are often used in fuel-powered machinery. Voltage range should match the system to ensure stable operation, and installation style affects ease of integration. In harsh or outdoor environments, waterproof and durable designs are preferred to ensure long-term, reliable runtime tracking for maintenance planning and equipment management.
