Description

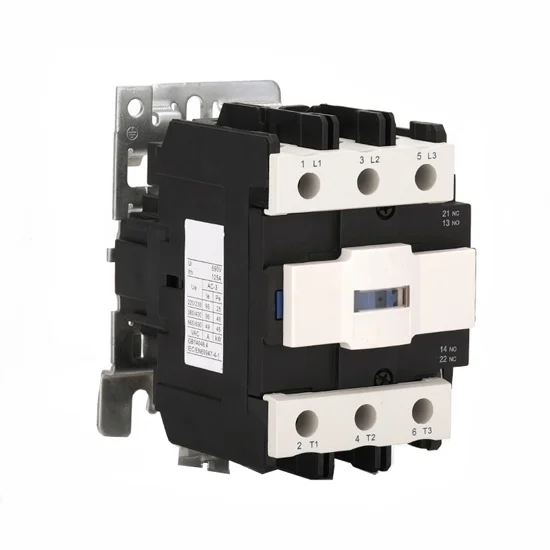

32 Amps AC Contactor Features
This is a brand new upgrade bypass contactor for long-distance connecting and breaking circuit. Rated current with 32 Amps, 3P+NO or 3P+NC, there are 24 volt coil, 110 volt coil, 220 volt coil for you to choose.
32 Amps AC Contactor Specifications
| Model | ATO-CJX2-32 | |
| Rated Operational Current (AC-3) | 380V | 32A |
| 660V | 21A | |
| Conventional Heating Current | 50A | |
| Rated Insulation Voltage | 690V | |
| Power of Controllable 3-phase Squirrel-cage Motor (AC-3) | 220V | 7.5kW |
| 380V | 15kW | |
| 660V | 18.5kW | |
| Operational Frequency (AC-3) | Electric Life | 600 times/h |
| Mechanical Life | 3600 times/h | |
| Service Life | Electric Life (104 times) | 80 |
| Mechanical Life (104 times) | 800 | |
| Matching Fusing Model | RT16-50 | |
| Average Power Consumption (20℃) @ 50Hz | Pick-up | 110VA |
| Holding | 11VA | |
| Contact Form (Optional) | 3P+NO or 3P+NC | |
| Rail Size | 35mm | |
| Ambient Temperature | -5℃~+40℃ | |
| Altittude | ≤2000m | |
| Class of Pollution | Class 3 | |
| Installation Category | Ⅲ | |
| Weight | 0.33kg |
32 Amps AC Contactor Dimensions
Details
Tips: The main components of the AC contactor
- Electromagnetic system, including attracting coil, moving iron core and static iron core.
- The contact system comprises three main contacts and two normally open and two normally closed auxiliary contacts, which are connected with the moving iron cores.
- Arc extinguishing device, the AC contactor with large capacity is generally equipped with arc extinguishing device to cut off the arc quickly and avoid burning the main contact.
- Insulating housing and accessories, various springs, transmission mechanisms, short-circuit rings, binding posts, etc.
- The contact of the AC contactor is made of silver-tungsten alloy and has good electrical conductivity and high temperature ablation resistance.
