Description

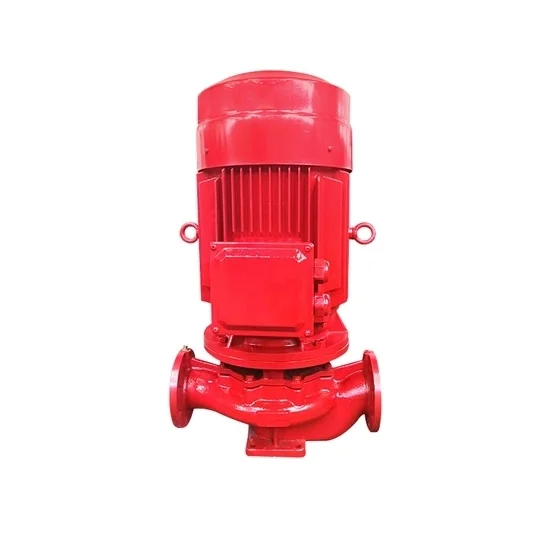

2 hp fire pump consists of motor and pump two parts. Fire fighting pump is equipped with a mounting base, easy to install, increase the stability of the pump operation.
Features:
- Fire pump is compact in structure and small in size.
- Pump inlet and outlet are horizontal direction, simplifying the connection of the pipeline.
- Pump rotor has small winding, stable operation, small vibration, long service life.
Specification:
- Model: ATO-XBD3.0/1G-32-160
- Power: 2 hp (1.5 kW)
- Number of Stage: single stage
- Voltage: 380V (other voltage, please contact us)
- Caliber: 32 mm
- Flow Rate: 6.5m³/h
- Head of Pump: 32m
- Rotating Speed: 2900 r/min
- Net Weight: 39kg
Structure:
Tips: What is Fire Pump?
A fire pump is a specialized device that is used to increase water pressure and flow rate in a fire protection system, such as a sprinkler system or standpipe system, to ensure adequate water supply in the event of a fire. Fire pumps are typically powered by electric motors or diesel engines and are designed to deliver a specific amount of water at a specific pressure to the fire protection system. Fire fighting pumps are typically designed to deliver a high volume of water at a high pressure, and they are often installed in commercial or industrial buildings, as well as in high-rise residential buildings.
