Description

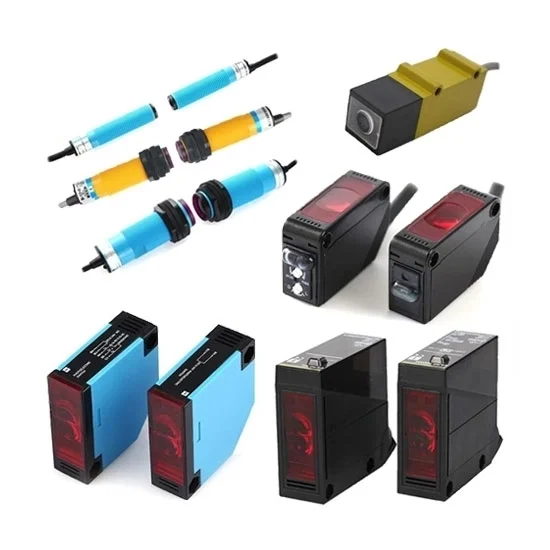

Through beam photoelectric sensor with reverse power protection, short circuit protection, current overload protection, can be directly connected with PLC.
Applications: Photoelectric sensors have been used as position detection, liquid level control, product counting, width discrimination, speed detection, fixed length cutting, holes recognition, signal delay, automatic door sensing, color scale detection, punching and cutting Machine and security and many other areas. In addition, using the stealthiness of infrared, photoelectric sensors also can be used as a burglar alarm in banks, warehouses, shops, and offices.
Specification:
1. DC/AC output:
| Type | Round type | Square amplifier built-in type | ||||
| Dimension | M12*1 | M18*1 | M30*1.5 | 15.5*21*41mm | 10.8*20*31mm | |
| DC type | NPN | NO | NO | NO | NO | NO |
| NC | NC | NC | NC | – | ||
| – | NO+NC | NO+NC | – | – | ||
| PNP | NO | NO | NO | NO | NO | |
| NC | NC | NC | NC | – | ||
| – | NO+NC | NO+NC | – | – | ||
| AC type | Two-wire | – | NO | NO | – | – |
| – | NC | NC | – | – | ||
| Detection range | 3m±10% | 5m±10% | 10m±10% | 2m±10% | 15m±10% | |
| Detection target | Opaque object | Opaque object | Opaque object | Opaque object | Opaque object | |
| Detection range regulation | Fixed | Fixed | Fixed | Fixed | Fixed | |
| Response time | 1ms | 1ms | 1ms | 1ms | 1ms | |
| Connection delay | 1.5ms | |||||
| Light source | Infrared light 660nm | |||||
| Power supply | DC type: DC 12-24V (6-36V), impulse (p-p) 10% below; AC type: AC 110-220V (90-250V) 50/60Hz | |||||
| Withstand voltage | AC1000V 50/60Hz 1min between charging part and housing | |||||
| Voltage influence | Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance | |||||
| Consumption current | N/P type: ≤20mA, A type: ≤1.7mA | |||||
| Control output | N/P type: ≤300mA, A type: ≤400mA, J type: ≤2A (contact service life: 0.1 million times) | |||||
| Loop protection | N/P/D type: reversal connection protection, surge absorption, load short-circuit protection, A type: surge absorption | |||||
| Ambient temperature & humidity | Operation temperature/storage temperature: -30~65℃ (no freeze, no dew); Operation humidity/storage humidity: 35~95%RH | |||||
| Temperature influence | Temperature range -30~65℃, at +23℃, ±15% detection distance; Temperature range -25~60℃, at +23℃, ±10% detection distance | |||||
| Insulation impedance | ≥50MΩ (DC500 megameter) between charging part and housing | |||||
| Material | Housing: Nickel plated brass (ABS), Detection surface (lens): PMMA | |||||
| Protection class | IP67 | |||||
| Cable length | 0.9~1.2m |
2. Relay output:
| Type | Square relay built-in type | |
| Dimension | 18*50*50mm | 25*65*75mm |
| Relay output | DC illuminated | DC illuminated |
| AC illuminated | AC illuminated | |
| DC non-illuminated | DC non-illuminated | |
| AC non-illuminated | AC non-illuminated | |
| Detection range | 5m±10% | 10m±10% |
| Detection target | Opaque object | Opaque object |
| Detection range regulation | Fixed | Fixed |
| Response time | 30ms | 30ms |
| Response frequency | DC: 0.5kHz, AC: 25kHz | |
| Delay distance | ≤10% detection distance | |
| Connection delay | 1.5ms | |
| Light source | Infrared light 660nm | |
| Supply voltage | DC type: DC 12-24V (6-36V), Impulse (p-p) 10% below; AC type: AC 110-220V (90-250V) 50/60Hz; DC/AC type: DC 12-240V/AC 24-240V, 50/60Hz | |
| Withstand voltage | AC1000V 50/60Hz 1min between charging part and housing | |
| Voltage influence | Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance | |
| Power current | ≤3VA | |
| Control output | ≤2A (contact service life: 0.1 million times) | |
| Allowed impulsion and vibration | B≤30g, T≤11ms, f≤55Hz, a≤1mm | |
| Ambient temperature & humidity | Operation temperature/storage temperature: -30~65℃ (no freeze, no drew); Operation humidity/storage humidity: 35~95%RH | |
| Temperature influence | Temperature range -30~65℃, at +23℃, ±15% detection distance; Temperature range -25~60℃, at +23℃, ±10% detection distance | |
| Insulation impedance | ≥50MΩ (DC500 megameter) between charging part and housing | |
| Material | Housing: Aluminum die casting (ABS), Detection surface (lens): PMMA | |
| Protection class | IP65 | |
| Cable length | 1.2m |
Wiring diagram:
Tips: How does through beam photoelectric sensors work effectively in actual application?
- Avoid strong light sources
In high ambient illumination, through beam photoelectric sensors can work steadily. But should avoid the optical axis of the photoelectric sensor is facing the sun, incandescent and other strong light source. If the angle between the optical axis of the light receiver and the strong light source can’t be changed, a light-shielding plate can be installed on the top and the periphery of the photoelectric sensor, or a shading tube can be set outside. - Prevent mutual interference
When several sets of infrared photoelectric sensors are installed in close proximity to each other, the neighboring groups need to be prevented from interfering with each other. The most effective way is to set light projectors and light receivers cross, more than 2 groups need to increase the group distance. Or use different frequency photoelectric sensors. - Specular reflection affect
When the detection object is shiny or has a smooth metal surface, the general reflectivity is high. There is an approximate specular reflection affect. At this time, the light projector and detection object is installed to form an angle of 10 ~ 20 °. The optical axis of the light projector is not perpendicular to the object, thus preventing malfunction.
