Description

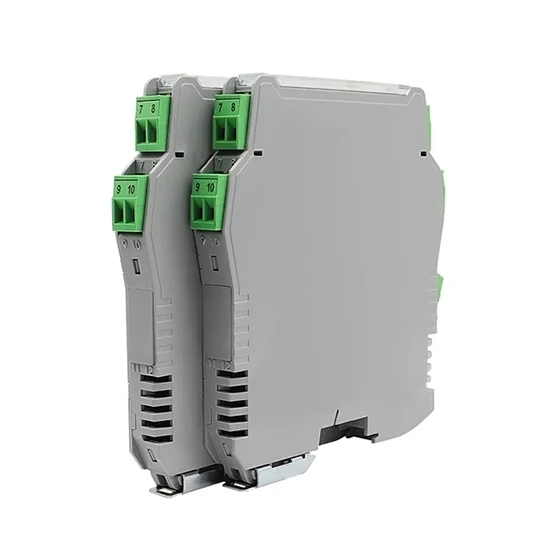

The signal isolator can convert the input signal into 0~20mA/0~10V output signal.
Specification:
| Model | ATO-TS-TR/TS-TC |
| Dimension | 106.5*12.5*115mm |
| Input signal | thermal resistor, resistor, potentiometer, thermocouple |
| Output signal | 0~20mA, 0~10V |
| Number of input & output channels | 1 input channel & 1 output channel, 1 input channel & 2 output channels, 2 input channels & 2 output channels |
| Output load resistance | RL≤400Ω (output is current signal), RL≥10KΩ (output is voltage signal). |
| Power supply | DC 24V |
| Voltage range | DC 18~32V |
| Basic accuracy | ±0.1%F.S or 0.2%F.S (20℃), subject to the actual object. Basic accuracy does not include cold end compensation error. |
| Temperature drift | ±0.1%F.S/℃ (-20℃~+55℃) |
| Response time | ≤1S (0-90%) (TYP) |
| Insulation strength | 1500V AC/1min (between input, output and power supply) |
| Insulation resistance | ≥100MΩ (between input, output and power supply) |
| Operating temperature range | -20~+55℃ (no condensation, no icing) |
| Electromagnetic compatibility | IEC61326-1 |
| Communication output protocol | MODBUS-RTU |
| Communication distance | number of nodes ≤32, distance ≤1000m |
| Installation | 35mm DIN rail |
Dimensional drawing (unit: mm):
Wiring diagram:
