Description

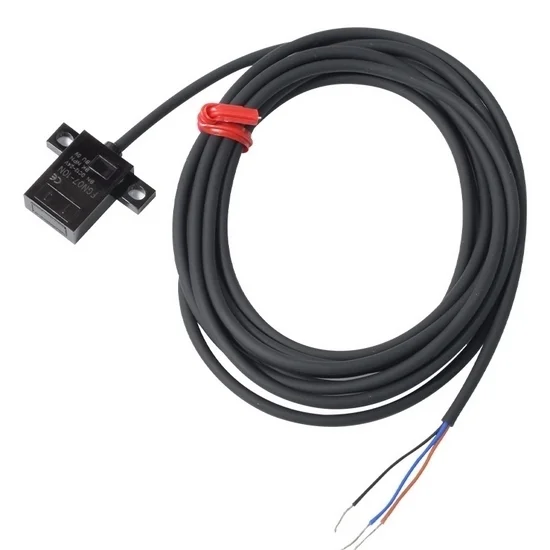

Designed for tight spaces, this micro photoelectric sensor delivers stable infrared detection with strong ambient-light resistance. Multi-directional sensing and multiple output options can be selected according to individual needs. Built-in protection and a durable design ensure reliable industrial performance.
Specification
| Model |
ATO-FGN07-10N; ATO-FGN07-10P; ATO-FGN07-10NA; ATO-FGN07-10PA |
ATO-FGN07-10ND; ATO-FGN07-10PD; ATO-FGN07-10NAD; ATO-FGN07-10PAD |
| Detection Direction | Front | Above |
| Detection Type | Diffuse Reflection | |
| Detection Distance | 0-10mm | |
| Connection Method | 3-core cable (2.5mm diameter, 2m length) | |
| Power Supply Voltage | 12-24VDC | |
| Light Source | 940nm infrared modulated light | |
| Control Output | NPN.NO/NC, PNP.NO/NC | |
| Sensitivity Adjustment | None | |
| Maximum Output Current | 50mA | |
| Current Consumption | <25mA | |
| Response Time | <1ms | |
| Power Polarity Reversal Protection | Built-in | |
| Short Circuit & Overload Protection | Built-in | |
| Hysteresis | 10% | |
| Ambient Temperature | -25°C to 55°C | |
| Ambient Humidity | 35%-85% RH | |
| Ambient Light Intensity | Daylight: 10,000 lx, Artificial Light: 3,000 lx | |
| IP Rating | IP66 | |
| Dimensions | 26×20×7mm | |
| Weight | 200g | |
| Notes | Customizable 5V products available |
Supplementary Form
| Model | Detection Direction | Output Method | Operating Voltage |
| ATO-FGN07-10N | Front Detection | NPN NO | DC12-240V |
| ATO-FGN07-10P | PNP NO | ||
| ATO-FGN07-10NA | NPN NC | ||
| ATO-FGN07-10PA | PNP NC | ||
| ATO-FGN07-10ND | Above Detection | NPN NO | DC12-24V |
| ATO-FGN07-10PD | PNP NO | DC12-240V | |
| ATO-FGN07-10NAD | NPN NC | DC12-24V | |
| ATO-FGN07-10PAD | PNP NC |
Feature
- Compact Design: Mini photoelectric sensor 26×20×7mm fits tight spaces.
- Fast Detection: <1ms response with 0–10mm short-range sensing.
- Ambient-Light Resistant: 940nm infrared works in bright or dusty environments.
- Durable & Reliable: Built-in protection ensures stable industrial performance.
Dimension
Wiring Diagram
Tip: How to select the appropriate photoelectric switch model for a system?
Selecting the right mini rectangular photoelectric sensor requires considering both the sensing direction and the output type to match the control system requirements. Evaluate the installation environment, target material, and detection distance to ensure consistent detection performance. Choosing the proper model helps integrate the sensor seamlessly into equipment while maintaining stable, short-range detection.
