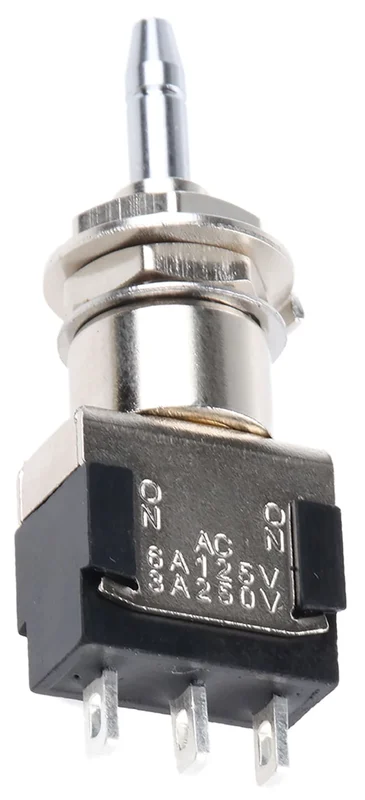

KNITTER-SWITCH MPA Series Miniature Push Button Switch, Latching, Panel, 6.2 mm Cutout, SPDT, IP67 250 V ac

Description

Knitter-Switch Miniature Push Button Switches – MPA & MPE Series

Knitter-Switch MPA and waterproof MPE series of miniature Push Button switches are available in a choice of SPDT or DPDT contact configurations with momentary or alternate switching functions and solder terminals.
Both the MPA and the IP67 waterproof MPE switches are designed to be panel mounted. They have a contact resistance less than 10mΩ and an insulation resistance greater than 1000MΩ. They are epoxy sealed with a flux proof construction.
Accessories for the MPA and the waterproof MPE miniature Push Button switches include a brass chromium-plated bezel and a 15mm diameter black actuator button, see stock number 134-2462.
