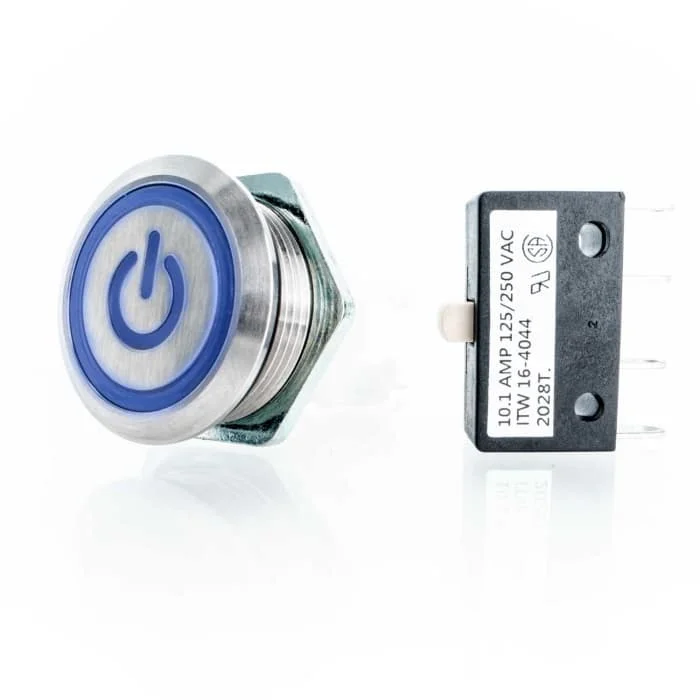

ITW Switches H48M Series Illuminated Push Button Switch, Momentary, Panel, 19.6 mm Cutout, SPDT, Blue LED, IP67, 28 V dc

Description

ITW H48M Series Stainless Steel Indicator

The ITW H48M Series of rugged stainless steel electromechanical pushbuttons are offered in both momentary & latching operation. The H48M series also offers spot & ring illumination options, to accompany the standard plain actuator. The series provides a reliable and robust switch solution to a wide range of applications, such as security, food processing & medical installations.

The H48M series have been designed to easily mount into panels of a thickness range of 0.5 mm to 4.5 mm. Frontal sealing offers IP67 rating and is achieved by an o-ring fitted around the body.
