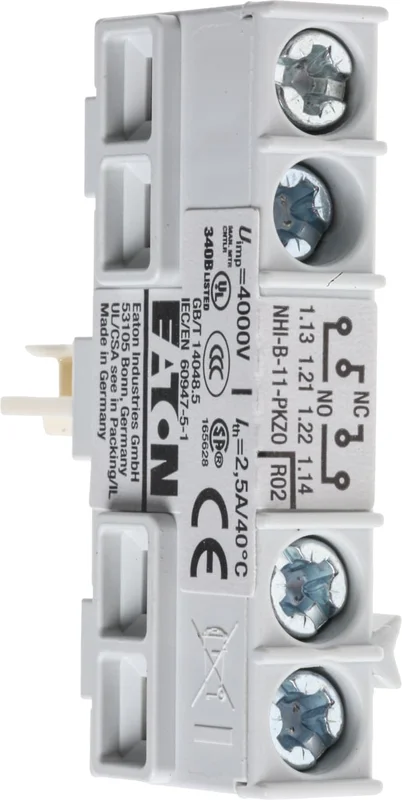

Eaton Auxiliary Contact, 2 Contact, 1 NO/1 NC, NHI-B-11-PKZ0, Top Mount, 1 A, 250 V dc, 440V ac, 208277 NHI-B-11-PKZ0

Description

Eaton Auxiliary Contacts For Use With The PKZ 0 System

A flexible and modular system built for motors up to 4 kW/400 V, the PKZ 0 system offers efficiency whilst being economical whatever the motor started performance profile. Eaton’s fail-safe auxiliary contacts offer several contact combinations and are front or right-hand side mountable depending on their design, no tools needed! Trip indication presents through a red short-circuit indicator on some components, allowing users to view a trip easily, other information is provided to the upstream programmable controller. Information provided includes “on/off” on the protective switch, “tripped” message for overload or short circuits, and “on/off” for the contact module.
