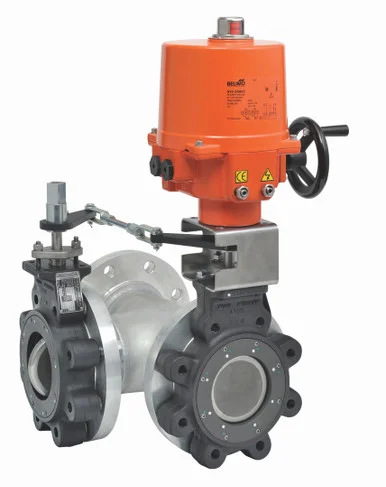

Belimo F7125-300SHP+SY4-220 3-Way 5″ Inch Butterfly Valve, ANSI Class 300, Cv 714 + Non Fail-Safe Industrial Valve Actuator, 240VAC, On/Off, Floating Point Control Signal, 2x SPDT, NEMA 4X, 2-Year Warranty

Description

Belimo F7125-300SHP+SY4-220 : 3-Way 5″ Inch Butterfly Valve, ANSI Class 300, Cv 714 + Non Fail-Safe Industrial Valve Actuator, 240VAC, On/Off, Floating Point Control Signal, 2x SPDT, NEMA 4X, 2-Year Warranty

Belimo F7125-300SHP high performance butterfly valve assembly with SY4-220 actuator provides dependable flow control for chilled water and hot water HVAC hydronic systems. The actuator supports floating or 3-point control and common building automation sequences. Use the specifications below to confirm pressure class, Cv, voltage, control signal, and enclosure rating before ordering.

Belimo F7125-300SHP Valve Specifications

ANSI Class	300
Pattern	3-way
Cv	714
Fluid	Chilled or hot water, up to 60% glycol
Body Pressure Rating	ANSI Class 300
Flow characteristic {Tools}	Linear
End Fitting	Flange
Valve Size	5″ [125]



Belimo SY4-220 Valve Actuator Specifications
