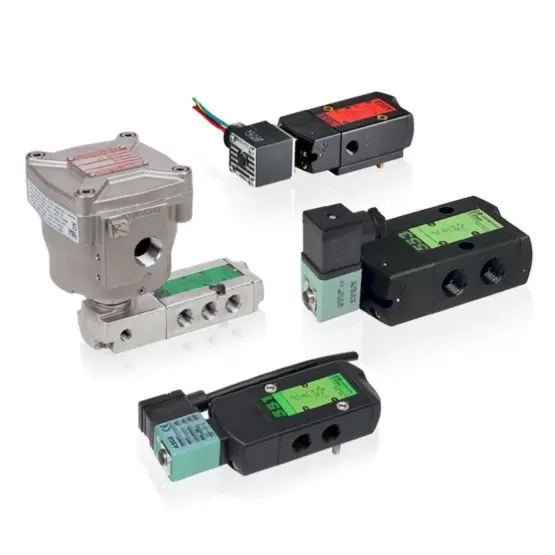

ASCO SCG551A001MS.24/50-60 – Series 551 Solenoid Spool Valve

Description

Specifications

• Product Type: Solenoid Valve
• Valve Actuation: Solenoid – Pilot Operated
• Function: 3/2 Normally Closed – 5/2 Spring Return
• Body Material: Light Alloy
• Flow (Cv): 0.69 Cv
• Pipe/Port Type and Size: G 1/4 (ISO 228/1)
• Media: Air, Inert Gas
• Min Operating Pressure (Air): 2 bar
• Max Operating Pressure (Air): 10 bar
• Min Ambient Temperature: -25 °C
• Max Ambient Temperature: 60 °C
• Min Fluid Temperature: -25 °C
• Max Fluid Temperature: 60 °C
• Product Weight: 0.34 kg
• Voltage and Frequency: 25 Volts AC with 50, 60 Hz
• Watt Rating: 2.5 W
• Orifice Size: 6 mm
• Electrical Connection Type: Included (EN175301-803, industry standard form B)
• Coil Class: F
