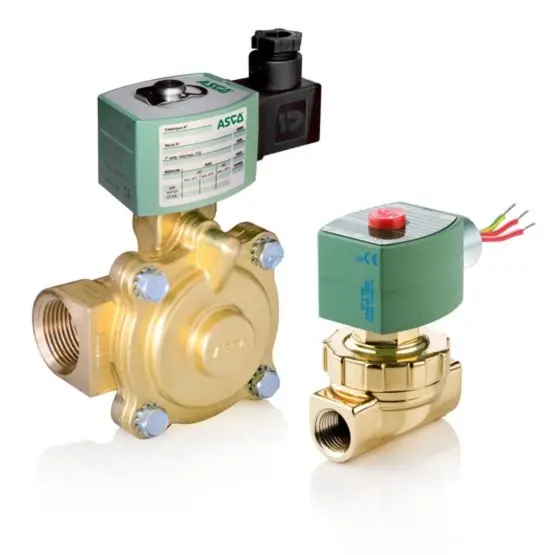

ASCO OFST8220G031AC24/60 – Solenoid Valve

Description

Specifications

• Valve Actuation: Solenoid
• Function: 2 way – 2/2 Normally Closed
• Body Material: Brass
• Flow (Cv): 43 Cv
• Pipe/Port Type and Size: NPT 2
• Media: Steam
• Min Ambient Temperature: 32°
• Max Ambient Temperature: 125°
• Min Fluid Temperature: 32°
• Max Fluid Temperature: 210°
• Product Weight: 9 lbs
• Voltage and Frequency: 24 Volts AC with 60 Hz
• Watt Rating: 10.1 W
• Orifice Size: 1-3/4 in
• Coil Class: HT
• Coil Number: 238812-005
• Mounting Direction: Any
• Carton Note: 2 X 1-3/4 2NC BRASS 10.1/H AC
• Kit Number: 306807
