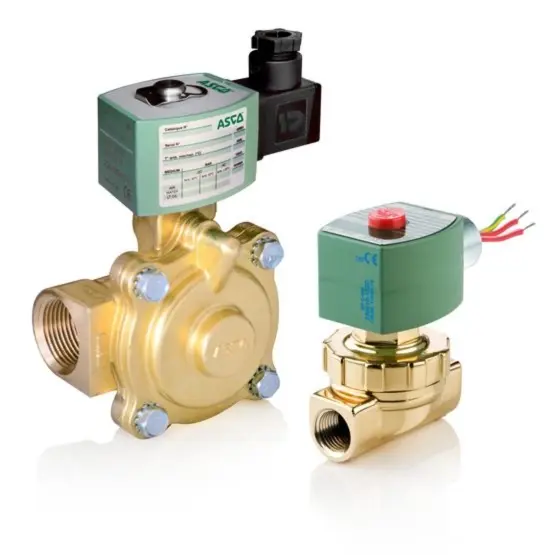

ASCO MSU8220G409AC24/60 – Hot Water and Steam Valve

Description

Specifications

• Function: 2 way – 2/2 Normally Closed
• Body Material: Brass
• Flow (Cv): 8.8 Cv
• Pipe/Port Type and Size: NPT 3/4
• Media: Steam
• Voltage and Frequency: 24 Volts AC with 60 Hz
• Watt Rating: 10.1 W
• Orifice Size: 3/4 in
• Coil Number: 238812-005
• Carton Note: 3/4 X 3/4 2NC BRASS 10.1/H AC
• Kit Number: 323471
