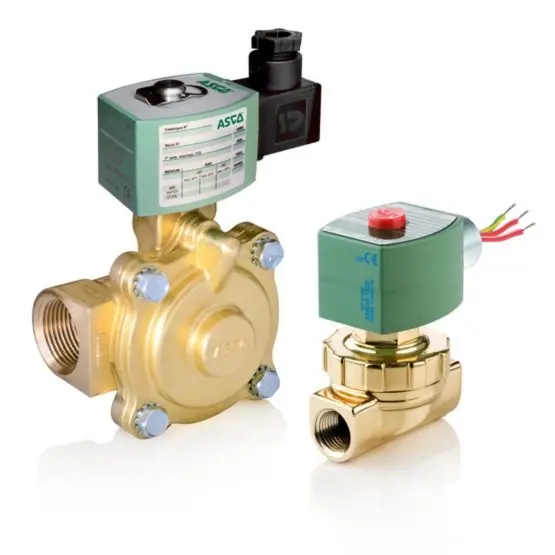

ASCO MSU8220G406HWAC220/50 – Series 220 Steam and Hot Water Solenoid Valve

Description

Specifications

• Function: 2 way – 2/2 Normally Closed
• Body Material: Brass
• Flow (Cv): 4.7 Cv
• Pipe/Port Type and Size: NPT 1/2
• Voltage and Frequency: 220 Volts AC with 50 Hz
• Watt Rating: 10.1 W
• Orifice Size: 1/2 in
• Coil Number: 238812-058
• Carton Note: 1/2 X 1/2 2NC BRASS 10.1/H AC
• Kit Number: 323468-HW
