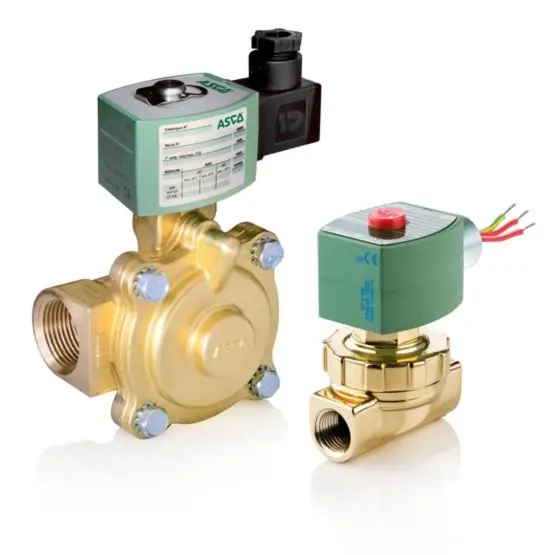

ASCO MSU8220G029AC120/60 – Series 220 Steam and Hot Water Solenoid Valve

Description

Specifications

• Valve Actuation: Solenoid
• Function: 2 way – 2/2 Normally Closed
• Body Material: Brass
• Pipe/Port Type and Size: NPT 1-1/2
• Voltage and Frequency: 120 Volts AC with 60 Hz
• Watt Rating: 10.1 W
• Coil Class: HT
• Coil Number: 238812-032
• Carton Note: 1-1/2 X 1-1/4 2NC BRASS 10.1/H AC
• Kit Number: 304393
