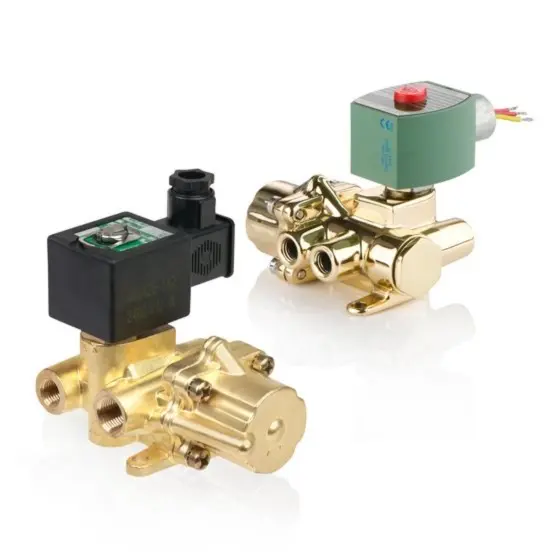

ASCO JKF8344G050AC120/60 – Solenoid Valve

Description

Specifications

• Valve Actuation: Solenoid – Direct Acting
• Function: 4 way
• Body Material: Brass
• Flow (Cv): 1.4 Cv
• Pipe/Port Type and Size: NPT 3/8
• Media: Air, Inert Gas, Light Oil, Water
• Min Operating Pressure (Air): 10 psi
• Max Operating Pressure (Air): 300 psi
• Min Operating Pressure (Water): 10 psi
• Max Operating Pressure (Water): 300 psi
• Min Operating Pressure (Light Oil): 25 psi
• Max Operating Pressure (Light Oil): 200 psi
• Product Weight: 7.7 lbs
• Voltage and Frequency: 120 Volts AC with 60 Hz
• Watt Rating: 10.1 W
• Orifice Size: 3/8 in
• Coil Class: F
• Coil Number: 238612-032
• Mounting Direction: Any
• Carton Note: 3/8 X 3/8 4W BRASS 10.1/F AC
• Kit Number: 302724
