Description
Specifications

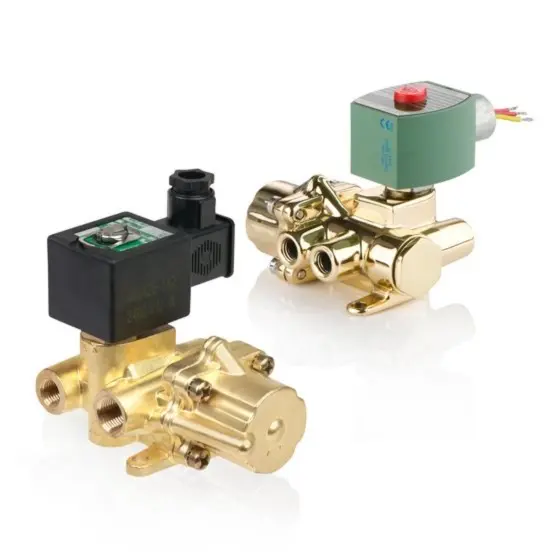

- Valve Actuation: Solenoid – Direct Acting
- Function: 4 way
- Body Material: Brass
- Flow (Cv): 0.8 Cv
- Pipe/Port Type and Size: NPT 3/8
- Min Ambient Temperature: 32°
- Max Ambient Temperature: 125°
- Product Weight: 4.63 lbs
- Voltage and Frequency: 240 Volts AC with 60 Hz
- Watt Rating: 17.1 W
- Holding Current (VA): 40
- Orifice Size: 1/4 in
- Coil Class: HB
- Coil Number: 238810-158-D
- Lead Length: 18 inch, Any
- Carton Note: 3/8 X 1/4 4W BRASS 17.1/H AC
- Kit Number: 302710
