Description
Specifications

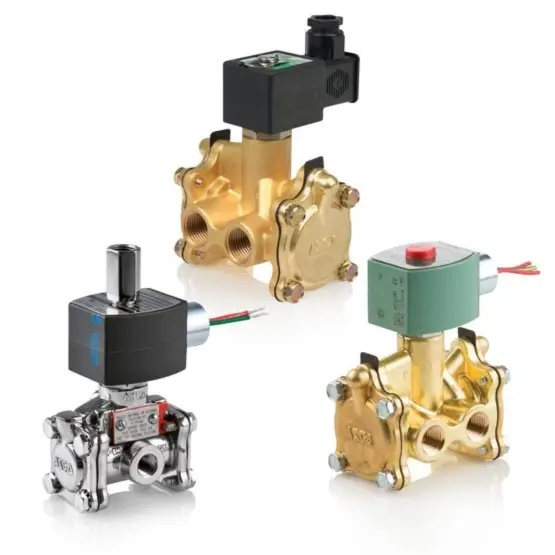

- Valve Actuation: Solenoid
- Function: 3 way – 3/2 Normally Closed
- Body Material: Stainless Steel
- Flow (Cv): 1.8 Cv
- Pipe/Port Type and Size: NPT 3/8
- Media: Air, Inert Gas
- Min Operating Pressure (Air): 0 psi
- Max Operating Pressure (Air): 130 psi
- Min Ambient Temperature: -20°
- Max Ambient Temperature: 149°
- Min Fluid Temperature: -20°
- Max Fluid Temperature: 149°
- Voltage and Frequency: 24 Volts DC
- Watt Rating: 0.55 W
- Orifice Size: 5/16 in
- Coil Class: FT
- Coil Number: 274714-909-D
- Mounting Direction: Any, 18 inch
- Carton Note: 3/8 X 5/16 3NC SS 0.55/F DC
- Kit Number: 325074-V
