Description
Specifications

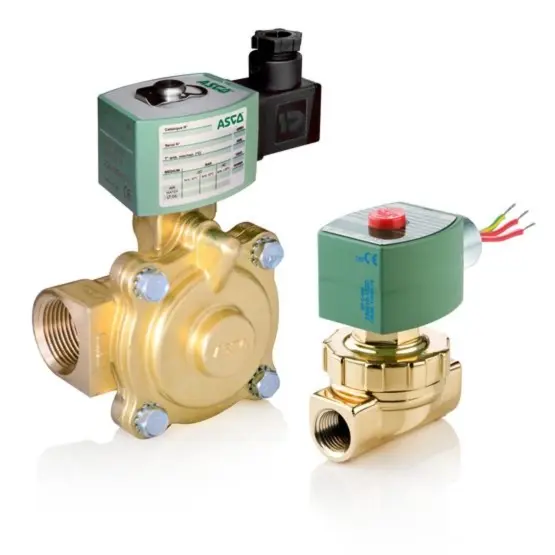

- Valve Actuation: Solenoid
- Function: 2 way – 2/2 Normally Closed
- Body Material: Brass
- Flow (Cv): 22.5 Cv
- Pipe/Port Type and Size: NPT 1 1/2
- Media: Steam
- Min Ambient Temperature: 32°
- Max Ambient Temperature: 125°
- Min Fluid Temperature: 32°
- Max Fluid Temperature: 210°
- Product Weight: 6.5 lbs
- Voltage and Frequency: 24 AC with 60 Hz
- Watt Rating: 10.1 W
- Orifice Size: 1-1/4 in
- Coil Class: FT
- Coil Number: 238614-005-D
- Mounting Direction: 18 inch, ANY
- Carton Note: 1-1/2 X 1-1/4 2NC BRASS 10.1/F AC
- Kit Number: 304395
