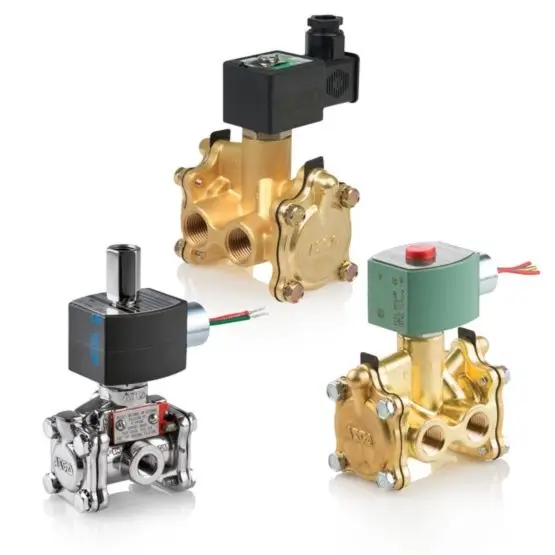

ASCO 8316G016AC240/60D – Solenoid Valve

Description

Specifications

• Valve Actuation: Solenoid
• Function: 3 way – 3/2 Normally Open
• Body Material: Brass
• Flow (Cv): 2.5 Cv
• Pipe/Port Type and Size: NPT 3/8
• Media: Air, Inert Gas, Water
• Min Operating Pressure (Air): 10 psi
• Max Operating Pressure (Air): 250 psi
• Min Operating Pressure (Water): 10 psi
• Max Operating Pressure (Water): 250 psi
• Min Ambient Temperature: 32°
• Max Ambient Temperature: 125°
• Min Fluid Temperature: 32°
• Max Fluid Temperature: 180°
• Product Weight: 4.1 lbs
• Voltage and Frequency: 240 AC with 60 Hz
• Watt Rating: 17.1 W
• Holding Current (VA): 40
• Orifice Size: 5/8 in
• Coil Class: FB
• Coil Number: 238610-158-D
• Lead Length: ANY, 18 inch
• Carton Note: 3/8 X 5/8 3NO BRASS 17.1/F AC
• Kit Number: 314496
