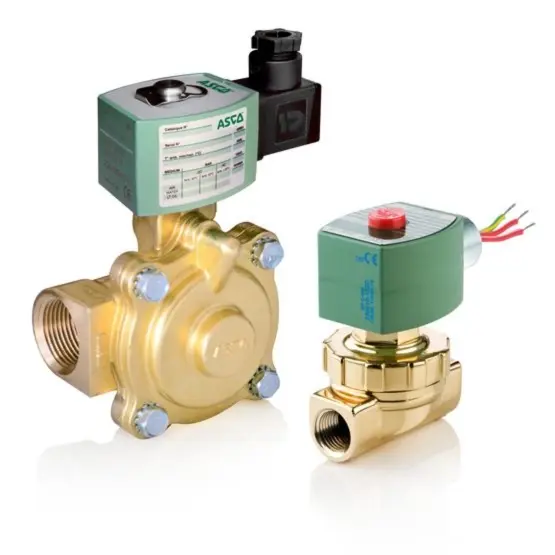

ASCO 8220G404HWAC24/60D – Hot Water and Steam Valve

Description

Specifications

• Valve Actuation: Solenoid
• Function: 2 way – 2/2 Normally Closed
• Body Material: Brass
• Flow (Cv): 4.7 Cv
• Pipe/Port Type and Size: NPT 1/2
• Voltage and Frequency: 24 Volts AC with 60 Hz
• Watt Rating: 6.1 W
• Orifice Size: 1/2 in
• Coil Class: FT
• Coil Number: 238210-005-D
• Lead Length: 18 inch
• Carton Note: 1/2 X 1/2 2NC BRASS 6.1/F AC
• Kit Number: 323482-HW
