Description
Specifications

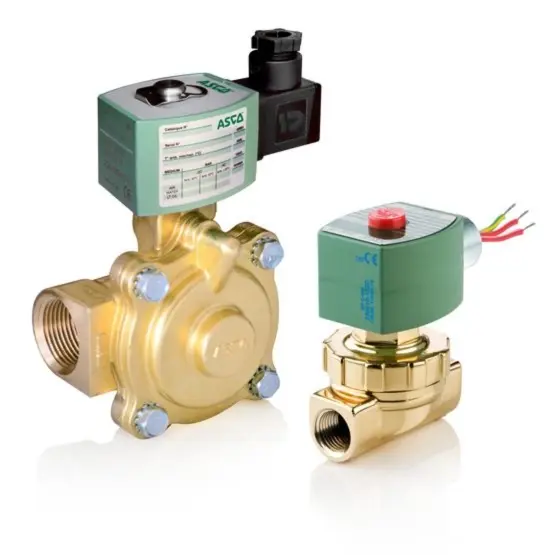

- Function: 2 way – 2/2 Normally Closed
- Body Material: Brass
- Flow (Cv): 4.7 Cv
- Pipe/Port Type and Size: NPT 1/2
- Media: Steam
- Min Ambient Temperature: 32°
- Max Ambient Temperature: 125°
- Min Fluid Temperature: 32°
- Max Fluid Temperature: 210°
- Product Weight: 0.99 lbs
- Voltage and Frequency: 24 Volts AC with 60 Hz
- Watt Rating: 6.1 W
- Orifice Size: 1/2 in
- Coil Class: FT
- Coil Number: 238210-005-D
- Mounting Direction: 18 inch, Any
- Carton Note: 1/2 X 1/2 2NC BRASS 6.1/F AC
- Kit Number: 323482
- Order Code: 21921
