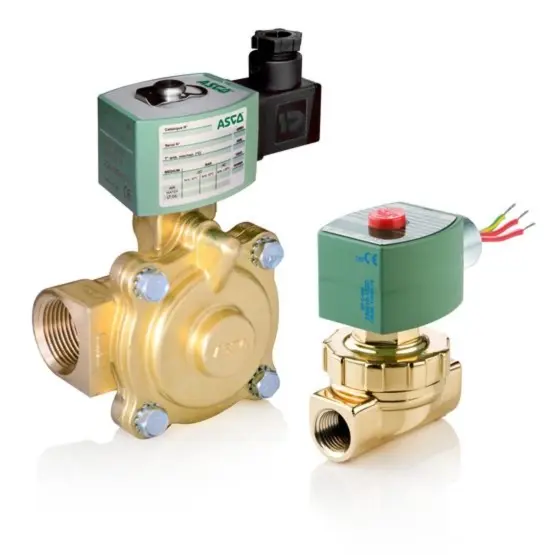

ASCO 8220G025AC24/60D – Hot Water and Steam Valve

Description

Specifications

• Valve Actuation: Solenoid
• Function: 2 way – 2/2 Normally Closed
• Body Material: Brass
• Flow (Cv): 13.5 Cv
• Pipe/Port Type and Size: NPT 1
• Media: Steam
• Min Ambient Temperature: 32°
• Max Ambient Temperature: 125°
• Min Fluid Temperature: 32°
• Max Fluid Temperature: 210°
• Product Weight: 4.41 lbs
• Voltage and Frequency: 24 Volts AC with 60 Hz
• Watt Rating: 10.1 W
• Orifice Size: 1 in
• Coil Class: HT
• Coil Number: 238810-005-D
• Lead Length: Any, 18 inch
• Carton Note: 1 X 1 2NC BRASS 10.1/H AC
• Kit Number: 304392
