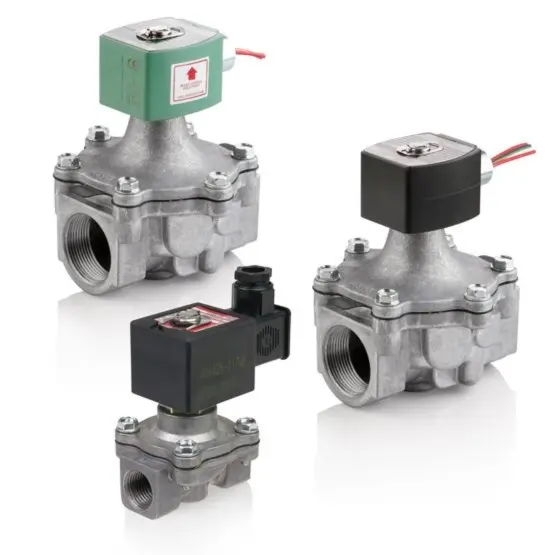

ASCO 8215A090VMAC120/60D – Solenoid Valve

Description

Specifications

• Valve Actuation: Solenoid – Direct Acting
• Function: 2 way – 2/2 Normally Closed
• Body Material: Aluminum
• Flow (Cv): 117 Cv
• Pipe/Port Type and Size: NPT 2 1/2
• Media: Vacuum
• Min Ambient Temperature: 32°
• Max Ambient Temperature: 77°
• Min Fluid Temperature: 32°
• Max Fluid Temperature: 104°
• Product Weight: 26.31 lbs
• Voltage and Frequency: 120 AC with 60 Hz
• Watt Rating: 28.2 W
• Holding Current (VA): 51
• Orifice Size: 3 in
• Coil Class: F
• Coil Number: 206409-011-D
• Mounting Direction: 18 inch, Vertical and Upright
• Carton Note: 2-1/2 X 3 2NC AL 28.2/F AC
• Kit Number: 302354-VM
