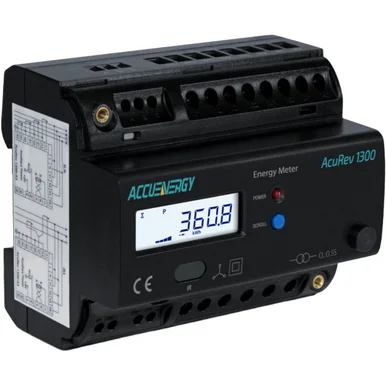

AccuEnergy ACUREV-1313-RCT-X0 AcuRev 1313 DIN Rail Power & Energy Meter, 10-690Vac, Rogowski Coil Input (AcuCT Flex), RS-485 Modbus RTU/BACnet MS/TP, Revenue Grade 0.5 Class, No Relay Output

Description

AccuEnergy ACUREV-1313-RCT-X0 : AcuRev 1313 DIN Rail Power & Energy Meter, 10-690Vac, Rogowski Coil Input (AcuCT Flex), RS-485 Modbus RTU/BACnet MS/TP, Revenue Grade 0.5 Class, No Relay Output

The AccuEnergy ACUREV-1313-RCT-X0 is an AcuRev 1313 DIN rail power and energy meter designed for cost-effective electrical submetering in commercial and industrial facilities. It features a built-in LCD for quick setup and data access, wide 10-690Vac direct voltage input, and revenue-grade accuracy (IEC 62053-22 Class 0.5s / ANSI C12.20 Class 0.5). The meter supports Rogowski Coil Input (AcuCT Flex), RS-485 communications (Modbus RTU or BACnet MS/TP), and pulse output integration. Base model (no relay output). Neutral and residual current values are calculated.

Common Applications

• Energy management systems
• Large commercial complexes
• Industrial environments
• Hospitality and hotels
• Multi-tenant commercial or residential
• Schools and universities
• Smart distribution cabinets

Specifications

• Accuracy: IEC 62053-22 Class 0.5s; ANSI C12.20 Class 0.5
• Voltage Input: 10-690Vac direct input (single model for most services)
• Frequency: 45Hz to 65Hz
• Current Input: Rogowski Coil Input (AcuCT Flex)
• Communications: RS-485 (Modbus RTU or BACnet MS/TP)
• Outputs: Pulse output
• Control Power: 100~415Vac, 50/60Hz; 100~300Vdc
• Operating Temperature: -25¡C to 70¡C (-13¡F to 158¡F)
• Mounting: Integrated TS35 (35mm) DIN rail channel
• Approvals: Measurement Canada approved tamper-proof design
