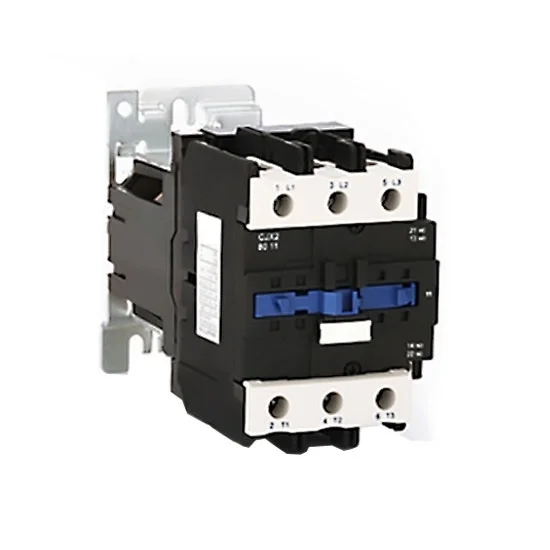

Description
Cost-effectively DC contactor is an electrical controlled switch to connect and break of the circuit load, which is widely used in the control system of DC electric control, storage battery circuit and capacitance circuit.
Specification
| Model | ATO-CJX2-80Z | ATO-CJX2-80008Z |
| Rated Current | 80A AC | |
| Coil Rated Voltage (Optional) | 12V DC, 24V DC, 36V DC, 48V DC, 110V DC, 220V DC | |
| Contact Form (Optional) | 3 Pole (3NO)+1NO+1NC | 4 Pole (2NO+2NC) |
| Frequency | 50Hz/ 60Hz AC | |
| Rated Power (AC-3) | 200-240V | 22kW (30HP) |
| 380-440V | 37kW (50HP) | |
| 500-550V | 45kW (60HP) | |
| 600-690V | 45kW (60HP) | |
| Conventional Thermal Current | 110A | |
| Operating Temperature | -40℃~85℃ | |
| Operating Humidity | 5~95% RH | |
| Dimensions | 87 x 129 x 182mm | 96 x 129 x 196mm |
| Weight | 1.75kg |
Circuits Diagram
Details
Tips: DC contactor Applications
The DC contactor adopts a modular design, which can assemble the number of contacts required by the customer and the contact form (normally open, normally closed and conversion) required by the customer with the least parts. It has a high contact breaking voltage, and adopts horizontal blowing magnetic field to extinguish the arc, and the highest breaking voltage can reach 220VDC. This DC contactor is suitable for program-controlled power supply or uninterruptible power supply system, forklift, electric vehicle, engineering machinery system.
