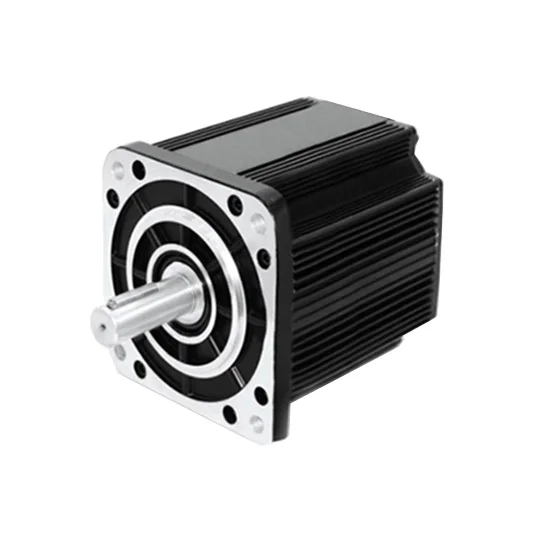

5kW Brushless DC Motor, 48V/72V/96V, 16 Nm

Description

5kW 3-phase BLDC motor kit operates at 48V/72V/96V DC voltage, maximum power to 12.6 kW, rated speed of 3000 rpm and rated torque of 16 Nm. It has higher start torque, smaller start-up current, lower noise, less vibration and longer working life advantages. Voltage, Brake, Matching Controller, Matching Gearbox options are available for your specific needs. Usually, ATO recommends buying a kit of 5000W BLDC motor.

Basic Specifications

• Model: ATO-DB180-48 (5000W-30S)
• Matched Controller Model: ATO-KBL (Click to the controller page)
• Rated Power: 5000W
• Rated Voltage: 48V DC / 72V DC / 96V DC (Optional)
• Rated Current: 130A at 48V, 97A at 72V, 65A at 96V
• Phase: 3 phase
• Holding Torque: 16 Nm
• Peak Torque: 42 Nm
• Rated Speed: 3000 rpm
• No-load Speed: 3600 rpm
• Square Flange Size: 180 mm
• Weight: 20 kg

Technical Parameters

• Working Efficiency: 85%
• Number of Poles: 4 pairs of poles (8 poles)
• Brake Apparatus Voltage: 24V DC/ 48V DC, (Electromagnetic brake will trigger when the DC supply cuts off)
• Brake Length: 40-50mm
• Insulation Grade: F
• Protection Grade: IP54
• Working Temperature: 0℃ – 40℃
• Humidity: 20%-85% RH (no condensation)
• Motor Lead Length: 100 cm
• Certificate: CE, RoHS, ISO/TS16949

Note: Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of ATO BLDC Motors can be customized.

Features

1. High performance and low consumption
   5kW brushless DC motor is three phase electric motor, which especially suited for application requiring higher efficiency and power density.
2. Wide application range and good control effect
   BLDC motor works with a matching controller (ATO-KBL) may achieve simple to complex control, turn from CW to CCW, and meet various communication requirements (RS232, RS485, CAN, etc.). BLDC controller can be controlled through 0-5V DC analog signal to adjust the speed.
3. Wide control speed torque range
   Brushless DC motor works with a gearbox (choose inline gearbox or right angle gearbox with gear ratio from 3:1 to 200:1) effectively reduce the motor’s speed and moment of inertia to increase torque in your application, because the gearbox can control the start/stop and change speed in time.
4. Low noise and smooth operation
   Brushless DC motor has no brushes, no sparks will be generated during operation, which greatly reduces friction.
5. Good protection performance and continuous duty (24/7)
   5000W BLDC motor kit adopts a new type of sealing device, which has good protection performance and strong adaptability to the environment, and works continuously in harsh environments such as corrosion and humidity.

Line Define

Dimension (Unit: mm)

Details

Tips: Application of 5kW brushless DC motor

5kW BLDC motor with 16Nm torque is absolutely powerful, which can be used for industrial machinery, boat, car, traction motor, pump, bus A/C systems, etc. It features the advantages of brushless DC motors: low electromagnetic influence, low noise, high efficiency, long lifetime, no spark during running and smooth operation. Technique development, like advance in new high-performance permanent magnet materials technology, semiconductor devices and ICs, which have urged the revolution of brushless DC motors. As the energy-saving and speed-regulating control requirements becoming more and more important, high-efficiency BLDC motor has become a priority choice for customer.
