Description

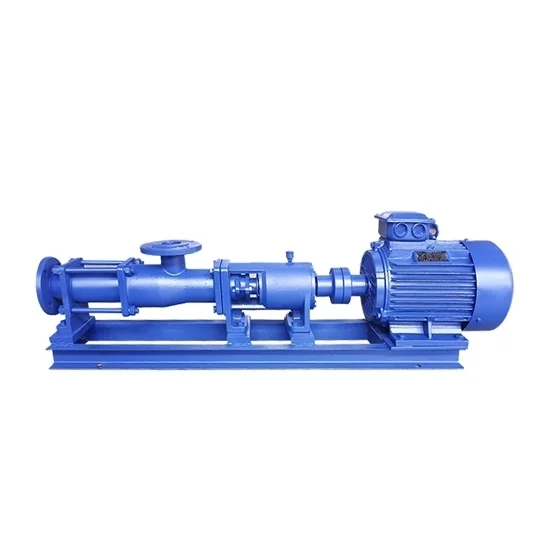

G series screw water pump is the closed type screw pump with inside mesh, belong to rotate cubage pump. 15 hp screw pump features a single screw (rotor) that rotates within a double-threaded helix (stator). Escellent performance and high efficiency make screw pump widely applicate in environment protect and chemical.
Features:
- Small mechanical vibration, no pulsation, stable operation.
- Besides can transport all kinds of fluid medium, can also transport high viscous medium.
- Flow is proportional to speed, with the help of the governor can realize the amount of automatic regulation.
Specification:
- Model: ATO-G60-1
- Voltage: 380V
- Power: 15 hp (11 kW)
- Pressure: 0.6 MPa
- Max Speed: 960 r/min
- Flow Rate: 30m3/h
- NPSH: 5m
- Suction Flange Diameter: 125 mm
- Discharge Flange Diameter: 100 mm
- Max Granule Size: 6 mm
- Max Fibre Size: 60 mm
Structure:
| 1. outlet | 2. pull bar | 3. stator | 4. screw shaft |
| 5. gimbal | 6. inlet | 7. connect shaft | 8. stuff seat |
| 9. stuff gland | 10. bearing house | 11. bearing | 12. gearing shaft |
| 13. bearing cover | 14. coupling | 15. base plate | 16. motor |
Tips: Why Do Screw Pumps Make Less Noise When Running?
The smooth and continuous flow of fluid through the screws, without sudden changes in direction or velocity, also helps to reduce noise. This is in contrast to other types of pumps that may generate noise due to turbulence or cavitation, which can occur when fluid flow is interrupted or changes direction abruptly.
