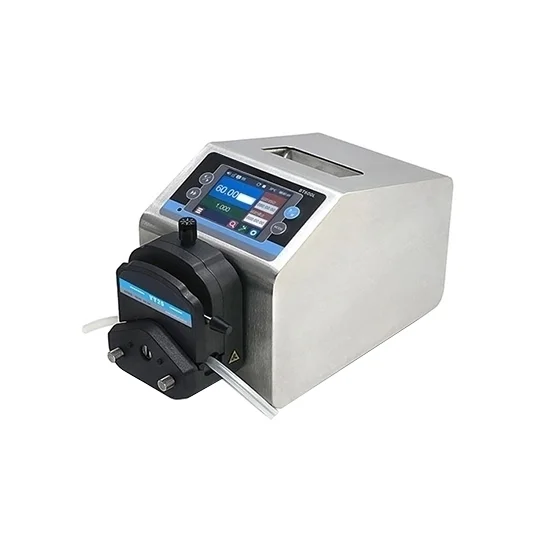

1100 GPD Peristaltic Dosing Pump

Description

1100 GPD peristaltic dosing pump for sale. Flow rate range 0.006～2900mL/min, applicable hose inner diameter 4.8/6.4/7.9/9.6mm. The peristaltic metering pump can be used with different tubing and pump head to reach your needs to liquid flow rate. It supports high-precision continuous transmission, control and simple dosing transmission for liquid.

Specification

Features

1. Peristaltic dosing pump has a 4.3-inch color LCD display, the touch screen cooperates with key operations.
2. Peristaltic dosing pump has LF-Touch-OS software system, which is efficient and stable, and has a good human-computer interaction mode, which is convenient for customization and upgrading.
3. Peristaltic metering pump has a flow mode and a time mode. Flow and time distribution can be pre-stored 5 groups of distribution parameters. High-precision flow control and display, micro-step algorithm to ensure the accuracy of split charging under different settings.
4. Peristaltic dosing pump has a guided flow correction function, which is simple and easy to use. The suck back function effectively prevents the liquid from dripping.
5. Programming mode supports 30 different quantitative parameter settings, which can realize complex control processes.
6. Peristaltic dosing pump has an intelligent temperature control function, which automatically adjusts heat dissipation according to the environment, so that the peristaltic metering pump is always in the best condition.
7. Peristaltic dosing pump has infrared remote control function, which is convenient for wireless connection.
8. Peristaltic metering pump can perform external analog speed regulation. The external control signal controls the start and stop, positive and negative, and split-charging.
9. RS485 communication, MODBUS protocol, supports up to 80 programming instructions, which is convenient for connecting the peristaltic metering pump with various control equipment.

1100 GPD Peristaltic Dosing Pump Dimensions Drawing (Unit: mm)

1100 GPD Peristaltic Dosing Pump Panel Details

1100 GPD Peristaltic Dosing Pump Hose Specification (Unit: mm)

Tips: Application of peristaltic dosing pump in medical field.

Production of medical equipment, testing instruments and consumables has always had strict requirements on sterility and transmission accuracy. ATO peristaltic dosing pumps have a wide range of applications in the medical industry, mainly due to the following advantages.

• Highly clean fluid tubing, easy to clean and sterilize.
• The tubing can be used once or repeatedly.
• The transmission is gentle and stable, and the measurement is accurate.
• ATO peristaltic dosing pumps can transfer materials containing magnetic beads, gels, glycerin and other impurities and sediments.
• Reliable and precise filling accuracy.
• The inner wall of the pipeline is smooth, no dead ends, no valves, and extremely low residue.
• Flexible scalability, small space ratio and low price.
• Low shear force, high integrity of materials retained
• ATO peristaltic dosing pumps can provide complete solutions for the following needs:
• Fully automatic chemiluminescence, POCT and other IVD equipment, such as sample injection/waste discharge, etc.
• Protein analysis, blood analysis, stool analysis and other supporting facilities.
• Surgical ablation, hemodialysis and other supporting facilities.
• Teeth cleaning, liposuction, gravel washing, intestinal perfusion, etc.
• High-precision filling of diagnostic reagents and encapsulation liquids.
