Description
Note: This needle valve cannot be used for drinking water.

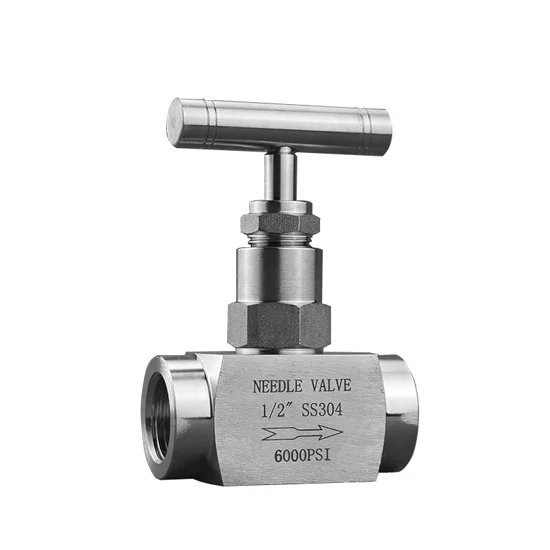

Good price ATO 1/2″ stainless needle valve is a compact 2-way needle valve made of 304/ 316 stainless steel and the temperature range is -20 to max. 180 °C. This needle valve can be used as a reliable shut-off valve, or to accurately control flow rates of clean gases or fluids.
Specification
- Model: ATO-NV-DN15
- Size: 1/2 inch
- Connection thread size: DN15
- Needle valve diameter: 6mm
- Nominal pressure: 40 MPa/ 41MPa
- Material: 304 stainless steel: G1/2″/ M1/2″, 316 stainless steel: G1/2″/ 1/2″NPT
- Working pressure: ≤420 bar
- Working temperature: -20~180℃
- Installation method: Screw connection
- Medium: Gas, liquid
Features
- Smooth and accurate flow control
- With a very compact design and reliable leak tight shut off
- High pressures up to 6000 bar
- Wide temperature range from -20 up to 180°C.
- Suited for aggressive fluids thanks to the 304 stainless steel
Dimension
| Model | A | B | C | D |
| ATO-NV-DN15 | 60mm | 96mm | 30mm | 6mm |
Stainless Steel Needle Valve Application
Tips: How does a needle valve control pressure?
An instrument needle valve uses a tapered pin to gradually open a space for fine control of flow. The flow can be controlled and regulated with the use of a spindle. A needle valve has a relatively small orifice with a long, tapered seat, and a needle-shaped plunger on the end of a screw, which exactly fits the seat.
